Model 704LV 3-Piece High Purity Ball Valve Tube / Pipe
Pressure Rating
PN64 (3/8"-2")
PN50 (21/2"-4")
PN50 (21/2"-4")
Material
EN10213-1.4408, ASTM A351-CF8M
Seat
TFM1600
Bore Type
Pipe end: Full bore, Tube end: Standard bore
Additional Features
Oil-free product
Pipe end: 5S (SCH5), 10S (SCH10)
Surface roughness:
AP Grade (Ra≦0.8μm),
BA Grade (Ra≦0.25μm)
Anti-static device (Ball-stem-body)
Able to mount actuators with extra parts
Purge port (Optional)
Pipe end: 5S (SCH5), 10S (SCH10)
Surface roughness:
AP Grade (Ra≦0.8μm),
BA Grade (Ra≦0.25μm)
Anti-static device (Ball-stem-body)
Able to mount actuators with extra parts
Purge port (Optional)
Download
Specifications
Model 704LV 3-Piece High Purity Ball Valve Tube / Pipe

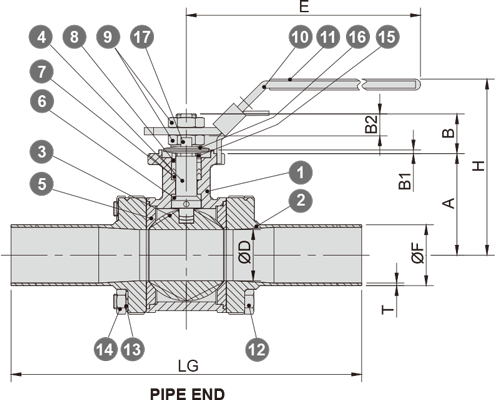

Materials List

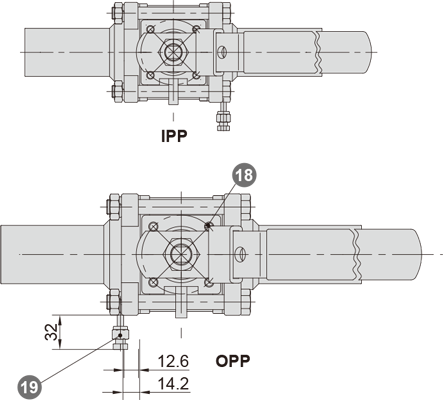

| No. | Part Name | Q'TY | Material |
|---|---|---|---|
| 1 | BODY | 1 | 1.4408 (CF8M) |
| 2 | END CAP | 2 | 1.4409 (CF3M) |
| 3 | BALL | 1 | SUS316 |
| 4 | STEM | 1 | SUS316 |
| 5 | SEAT | 2 | TFM1600 |
| 6 | STEM SEAL | 1 | R.PTFE |
| 7 | V-RING PACKING | 1SET | PTFE |
| 8 | BUSHING | 1 | 50%S.S.POWDER FILLED PTFE |
| 9 | STEM NUT | 2 | SUS304 |
| 10 | HANDLE | 1 | SUS304 |
| 11 | HANDLE SLEEVE | 1 | VINYL |
| 12 | BOLT | 4~6 | SUS304 |
| 13 | WASHER | 4~12 | SUS304 |
| 14 | BOLT NUT | 4~12 | SUS304 |
| 15 | GLAND | 1 | SUS304 |
| 16 | BELLEVILLE WASHER | 2 | SUS304 |
| 17 | LOCK SADDLE | 1 | SUS304 |
| 18 | STOP PIN | 1 | SUS304 |
| 19 | PURGE PORT | 0~2 | SUS304 |
Dimensions (mm)
| SIZE | A | B | B1 | B2 | t | Øf | ØD | ØF | E | H | L | M | T | LG | ISO 5211 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5S | 10S | ||||||||||||||||
| 3/8" | 10A | 37 | 18.8 | 2 | 9.3 | - | - | 9.6 | 17.3 | 136 | 72 | - | M5 | 1.24 | 1.65 | 125.4 | F03 |
| 1/2" | 15A | 37 | 18.8 | 2 | 9.3 | 1.65 | 12.7 | 15 | 21.7 | 136 | 72 | 39 | M5 | 1.65 | 2.1 | 150.8 | F03 |
| 3/4" | 20A | 40.3 | 18.8 | 2 | 9.3 | 1.65 | 19.05 | 20 | 27.2 | 136 | 74 | 41.8 | M5 | 1.65 | 2.1 | 155.7 | F03 |
| 1" | 25A | 50 | 20.4 | 2 | 10.7 | 1.65 | 25.4 | 25 | 34 | 152 | 92 | 43.4 | M5 | 1.65 | 2.8 | 186.2 | F04 |
| 11/4" | 32A | 55.5 | 20.4 | 2 | 10.7 | 1.65 | 31.8 | 32 | 42.7 | 152 | 98 | 50 | M5 | 1.65 | 2.8 | 195.6 | F04 |
| 11/2" | 40A | 63 | 26.8 | 3 | 12.6 | 1.65 | 38.1 | 38 | 48.6 | 190 | 109 | 54.4 | M6 | 1.65 | 2.8 | 231.6 | F05 |
| 2" | 50A | 71.3 | 26.8 | 3 | 12.6 | 1.65 | 50.8 | 50 | 60.5 | 190 | 117 | 46.8 | M6 | 1.65 | 2.8 | 243.4 | F05 |
| 21/2" | 65A | 89.9 | 33.5 | 3 | 17 | 1.65 | 63.5 | 65 | 76.3 | 300 | 147 | 71 | M8 | 2.1 | 3 | 290.2 | F07 |
| 3" | 80A | 99 | 33.9 | 3 | 17 | 1.65 | 76.2 | 80 | 89.1 | 322 | 156 | 72 | M10 | 2.1 | 3 | 302.2 | F10 |
| 4" | 100A | 120 | 33.9 | 3 | 17 | 2.11 | 101.6 | 100 | 114.3 | 440 | 178 | 70 | M10 | 2.1 | 3 | 326.2 | F10 |
