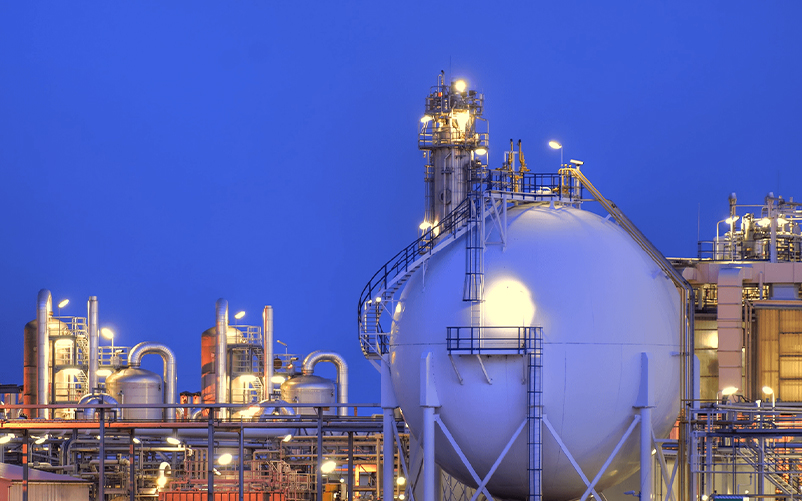

Chemical Industry

Fluids in the chemical industry are often volatile or corrosive, and are commonly used in chemical fertilizers, chloralkali process, fine chemicals, pesticides, daily chemicals, plastics and rubber products. In the chemical industry application, it is very important to select the valve according to the usage environment. It must be considered the corrosiveness of the fluid to select the suitable material and the safety structure of the valve, and whether the pipeline needs the functions of flow control or emergency shutdown. MIZUP valves are designed to meet various environmental requirements, such as anti-static structure, special corrosion-resistant materials, oil-free treatment, automatic switch, power failure reset function, etc., which can be applied to process conditions related to the chemical industry.

Applicable Products
2 Piece Flanged End Ball Valve
Model 203AU1 / 203AJ1 / 203AD1 2-Piece Ball Valve
Pressure Rating203AU1: ANSI Class 150LB
203AJ1: JIS 10K
203AD1: DIN PN16 (21/2"-6")
Material203AU1: ASTM A351 CF8 / CF8M
203AJ1: JIS G5121 SCS13A / 14A
203AD1: EN10213 1.4308 / 1.4408
SeatTFM1600, 25%, 50%
Bore TypeFull Bore
3-Piece Ball Valve
Model 901 3-Piece Ball Valve
Pressure RatingPN64 (1/4"-2")
PN50 (21/2"-4")
PN16 (5"- 6")
MaterialEN10213-1.4408, ASTM A351-CF8M
SeatTFM1600, 25%, 50%
Bore TypeFull Bore
Butt Weld End 3-Piece High Pressure Ball Valve
Model 953 3-Piece High Pressure Ball Valve
Pressure Rating
95F 2000WOG (1/4"-1")
1500WOG (11/4"-2")
1000WOG (21/2"-4")
95R 2000WOG (1/2"-11/4")
1500WOG (11/2"-21/2")
1000WOG (3"-4")
MaterialASTM A351-CF8M
ASTM A890-CE3MN (1.4410)
SeatTFM1600, 25%, 50%, PEEK
Bore TypeFull Bore, Reduced Bore
Flanged End 3-Piece Ball Valve
Model 905 3-Piece Ball Valve
Pressure RatingPN64 (1/2"-2")
PN50 (21/2"-4")
PN16 (5"-6")
MaterialEN10213-1.4408, ASTM A351-CF8M
SeatTFM1600, 25%, 50%
Bore TypeFull Bore
3-Piece Vacuum Ball Valve
Model 90KF-NW 3-Piece Vacuum Ball Valve
Pressure RatingPN64
MaterialEN10213-1.4408, ASTM A351-CF8M
SeatTFM1600
Bore TypeFull Bore
2-Piece Threaded End Ball Valve
Model 206 2-Piece Ball Valve
Pressure RatingPN64 (1/2"-2")
PN50 (21/2"-3")
MaterialEN10213-1.4408, ASTM A351-CF8M
SeatTFM1600, 25%, 50%
Bore TypeFull Bore
