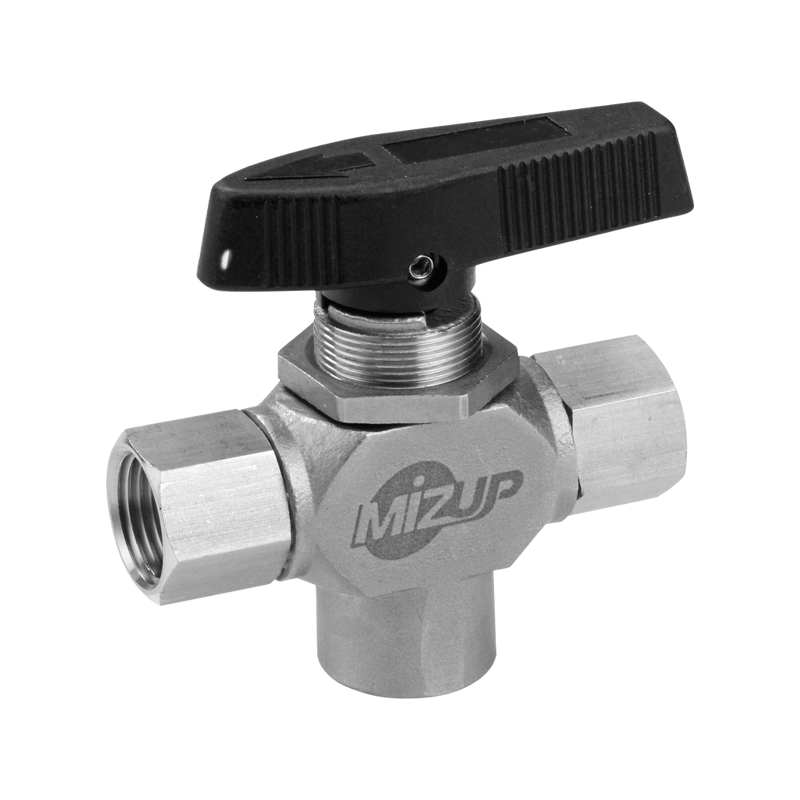

Model MP382 3-Piece 3-Way Instrumentation Ball Valve / Female Threaded
Maximum Pressure
3000PSI (207bar)
Temperature Rating
-20°C ~ +180°C
Material
ASTM A351-CF8M
Seat
TFM1600
Additional Features
Oil-free product
L-port, available
Available connections:
Compression fitting end,
Female/Male threaded
Silver plated nut
Heat treated ferrule
L-port, available
Available connections:
Compression fitting end,
Female/Male threaded
Silver plated nut
Heat treated ferrule
Download
Specifications
Model MP382 3-Piece 3-Way Instrumentation Ball Valve / Female Threaded
Materials List
| No. | Part Name | Q'TY | Material |
|---|---|---|---|
| 1 | BODY | 1 | ASTM A351-CF8M |
| 2 | END CONNECTOR | 2 | SUS316 |
| 3 | BALL | 1 | SUS316 |
| 4 | STEM | 1 | SUS316 |
| 5 | SEAT | 2 | TFM1600 |
| 6 | PACKING | 2 | PTFE |
| 7 | STEM WASHER | 1 | SUS304 |
| 8 | STEM PACKING | 1SET | PTFE |
| 9 | PACKING NUT | 1 | SUS316 |
| 10 | HANDLE | 1 | PA66-GF30% |
| 11 | PANEL NUT | 1 | SUS304 |
| 12 | HANDLE SET SCREW | 1 | SUS304 |
| 13 | FRONT FERRULE | 3 | SUS316 |
| 14 | BACK FERRULE | 3 | SUS316 |
| 15 | NUT | 3 | SUS316 |
Dimensions (mm)
| SIZE | A | A1 | A2 | B | C | Ød | ØD | E | F | F1 | H |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4" | 83.6 | 65.6 | 70.2 | 63 | 25 | 5 | 6.49 | 11.5 | 32.3 | 26.7 | 42.2 |
| 3/8" | 86.6 | 67.6 | 71.6 | 63 | 25 | 6.3 | 9.7 | 11.5 | 33.8 | 26.7 | 42.2 |
| 1/2" | 105.5 | 89.6 | 89.6 | 77 | 27 | 10.3 | 12.9 | 16 | 41.6 | 37 | 47.9 |
| 3/4" | 105.7 | 89.6 | 89.6 | 77 | 27 | 10.3 | 19.2 | 16 | 41.7 | 37 | 47.9 |
