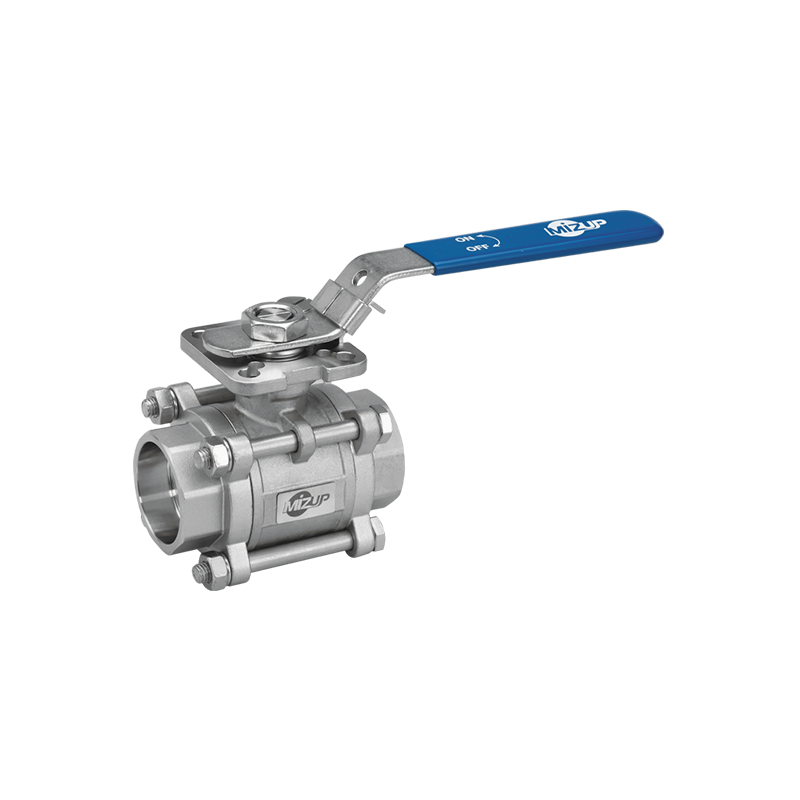

Model 902 3-Piece Ball Valve

Pressure Rating
PN64 (1/4"-2")
PN50 (21/2"-4")
PN16 (5"- 6")
Material
EN10213-1.4408, ASTM A351-CF8M
Seat
TFM1600, 25%, 50%
Bore Type
Full Bore
Additional Features
Available connections:
Threaded, Socket weld,
Butt weld, Extended butt weld
ISO 5211 direct mounting pad
Able to add anti-static device
(Ball-stem-body)
Download
INQUIRY
Specifications
Model 902 3-Piece Ball Valve

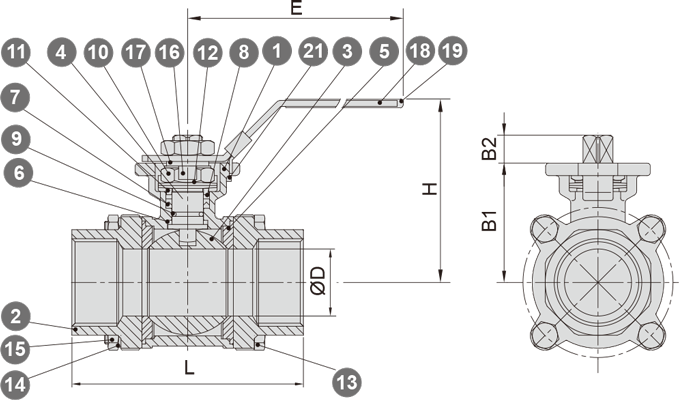

Materials List
No. Part Name Q'TY Material
1 BODY 1 1.4408 (CF8M)
2 END CAP 2 1.4408 (CF8M)
3 BALL 1 SUS316
4 STEM 1 SUS316
5 SEAT 2 TFM1600
6 STEM SEAL 1 R.PTFE
7 STEM SEAL 1SET PTFE
8 BUSHING 1 50%S.S.POWDER
FILLED PTFE
9 O-RING 1 VITON
10 STEM NUT 1 SUS304
11 GLAND 1 SUS304
12 BELLEVILLE WASHER 2 VINYL
13 BOLT 4~6 SUS304
14 WASHER 4~12 SUS304
15 BOLT NUT 4~12 SUS304
16 LOCK SADDLE 1 SUS304
17 WASHER 1 SUS304
18 HANDLE 1 SUS304
19 HANDLE SLEEVE 1 VINYL
20 STOP PIN 1 SUS304
21 STOP PIN NUT 1 SUS304

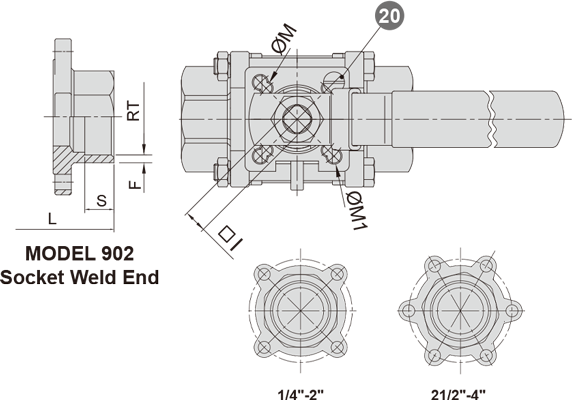

Dimensions (mm)
Size B1 B2 ØD E F H ☐1 L L1 LE ØM ØM1 ØN O ØP ØP1 RT S ISO 5211
1/4" 40.2 9 11.6 128 3.6 70.5 9 60 70 - 6 6 11.6 - 1 - 14.2 11 F03 F04
3/8" 40.2 9 12.5 128 2 70.5 9 60 70 - 6 6 14 - 1 - 17.7 11 F03 F04
1/2" 40.2 9 15 128 2 70.5 9 69 69 225 6 6 17 15.6 1 21 21.9 12 F03 F04
3/4" 43.4 9 20 128 2.6 73.8 9 78 78 225 6 6 22.5 20.7 1 26.8 27.3 14 F03 F04
1" 52 14 25 167 3.2 85.4 11 84 84 244 6 7 26 25.8 1 34.4 34.1 14 F04 F05
11/4" 56.5 14 32 167 5.35 90 11 104 104 253 6 7 34.4 33.3 1 43.4 42.8 15 F04 F05
11/2" 65.7 15.5 38 215 5.7 99.6 14 118 119 258 7 9.2 41.5 40.5 1 49.8 48.8 17 F05 F07
2" 73.95 15.5 50 215 6.1 107.8 14 129 131 275 7 9.2 53 51.5 1 61 61.3 19 F05 F07
21/2" 94 16.5 65 322 7.15 145.7 17 185 190 332 9 11 69.4 65 1 77 74 21 F07 F10
3" 102 16.5 80 322 7.6 154.7 17 205 220 354 9 11 82 81 1 91 90 25 F07 F10
4" 132 21.5 100 320 7.85 188 22 230 269 360 - 11 103 101 1 115 115.6 30 F10
