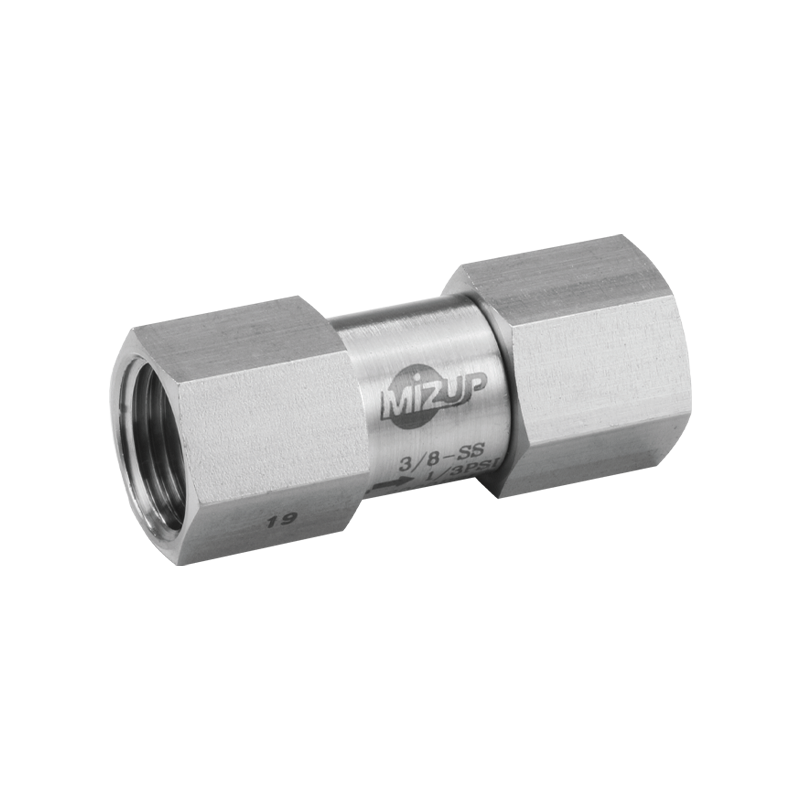

Model MP282 Mini Check Valve Male Threaded
Maximum Pressure
2000PSI (138bar)
Temperature Rating
-20°C ~ +180°C
Cracking Pressure
1/3 PSI
Material
SS316 BAR
Seat
VITON
Additional Features
Oil-free product
Available connections:
Compression fitting end,
Female/Male threaded
Female/Male threaded
Silver plated nut
Heat treated ferrule
Available connections:
Compression fitting end,
Female/Male threaded
Female/Male threaded
Silver plated nut
Heat treated ferrule
Download
Specifications
Model MP282 Mini Check Valve Male Threaded

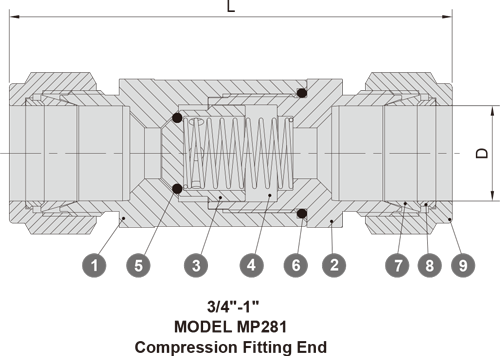

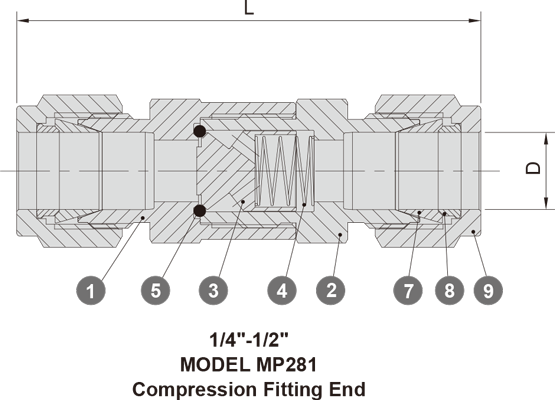

Materials List
| No. | Part Name | Q'TY | Material |
|---|---|---|---|
| 1 | BODY | 1 | SUS316 |
| 2 | END CONNECTOR | 1 | SUS316 |
| 3 | POPPET | 1 | SUS316 |
| 4 | SPRING | 1 | SUS304 |
| 5 | O-RING | 1 | VITON |
| 6 | O-RING | 1 | VITON |
| 7 | BV FF | 2 | SUS316 |
| 8 | BV BF | 2 | SUS316 |
| 9 | LOCKER | 2 | SUS316 |
Dimensions (mm)
| SIZE | D | L | L1 |
|---|---|---|---|
| 1/4" | 6.49 | 60.7 | 49 |
| 3/8" | 9.7 | 63.7 | 49 |
| 1/2" | 12.9 | 77.1 | 65 |
| 3/4" | 19.2 | 89.6 | 77.2 |
| 1" | 25.5 | 120 | 105 |
