Model MPY2 Angle Seat Globe Valve Flanged
Valve Pressure Rating
PN40 (1/2"-1")
PN25 (11/4"-2")
PN25 (11/4"-2")
Valve Piloting Type
Pneumatics (Spring return)
Control Function
Normally closed
Material
ASTM A351-CF8M
Temperature Range
-10°C ~ +180°C
Control Pressure
4 ~ 10 Bar
Seat
PTFE
Additional Features
Available connections:
Threaded, Flanged, T-Clamp
NAMUR solenoid mounting pad
Threaded, Flanged, T-Clamp
NAMUR solenoid mounting pad
Download
Specifications
Model MPY2 Angle Seat Globe Valve Flanged

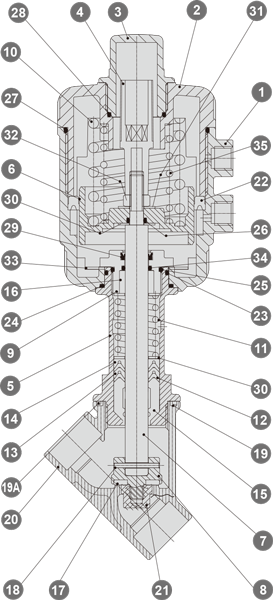

Materials List
| No. | Part Name | Q'TY | Material |
|---|---|---|---|
| 1 | ACTUATOR BODY | 1 | PA66-GF30% |
| 2 | ACTUATOR COVER | 1 | PA66-GF30% |
| 3 | TRANSPARENT CUP | 1 | PC |
| 4 | MOVABLE DISPLAYER | 1 | PA66-GF30% |
| 5 | TUBE | 1 | SUS316 |
| 6 | PISTON | 1 | BRASS |
| 7 | STEM | 1 | SUS316 |
| 8 | PLOG | 1 | SUS316 |
| 9 | GLAND NUT | 1 | BRASS |
| 10 | SPRING | 1 | SWC |
| 11 | SPRING | 1 | SUS304 |
| 12 | V-RING PACKING | 2 | VITON |
| 13 | V-RING PACKING | 1 | PTFE |
| 14 | V-RING PACKING | 1 | PTFE |
| 15 | BEARING | 1 | PTFE |
| 16 | BEARING | 1 | PTFE |
| 17 | SEAT | 1 | PTFE |
| 18 | DOWEL PIN | 1 | SUS316 |
| 19 | END SEAL | 1 | TFM4215 |
| 19A | END O-RING | 1 | EPDM |
| 20 | VALVE BODY | 1 | SUS316 |
| 21 | SEAT NUT | 1 | SUS316 |
| 22 | PISTON SEAL | 1 | NBR |
| 23 | TUBE O-RING | 1 | VITON |
| 24 | TUBE O-RING | 1 | VITON |
| 25 | TUBE O-RING | 1 | VITON |
| 26 | STEM O-RING | 1 | VITON |
| 27 | BODY O-RING | 1 | NBR |
| 28 | COVER O-RING | 1 | NBR |
| 29 | STEM SEAL | 1 | VITON |
| 30 | WASHER | 2 | BRASS |
| 31 | STEM WASHER | 2 | SUS304 |
| 32 | STEM NUT | 1 | SUS304 |
| 33 | BELLEVILLE WASHER 11/2"-2" | 1 | SUS304 |
| 34 | TUBE O-RING | 1 | VITON |
| 35 | SPRING(11/2"-2") | 1 | SWC |

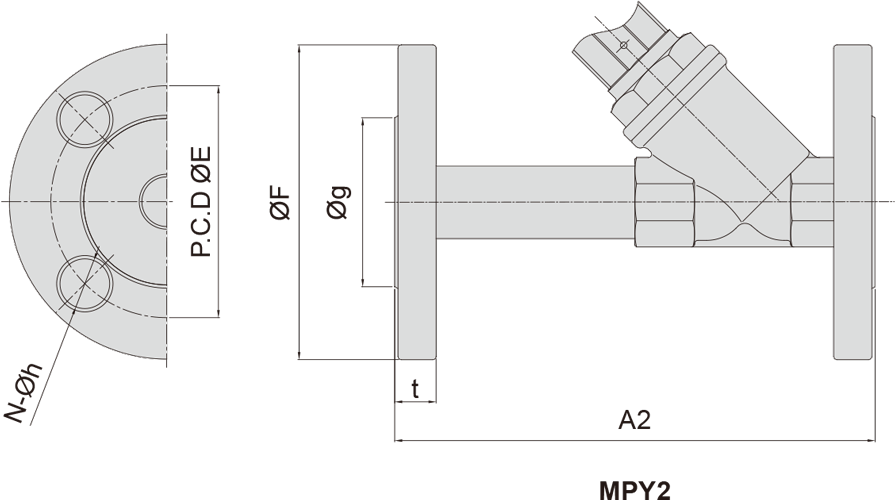

Dimensions (mm)
| SIZE | A1 | A2 | A3 | B1 | C | ØD | Ød | Ød1 | ØE | ØF | Øg | N-Øh | t | Ø Control head | P control bar | P operating bar | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| min | max | max | ||||||||||||||||
| 1/2" | 10K PN16 150LB |
65 | 145 | 113 | 173 | 152 | 70 | 25 | 9.5 | 70 65 60.3 |
95 95 89 |
51 45 35 |
4-15 4-14 4-16 |
12.5 14 11.5 |
50 | 4 | 10 | 11 |
| 3/4" | 10K PN16 150LB |
75 | 150 | 130 | 179 | 157 | 70 | 25 | 15.9 | 75 75 69.9 |
100 105 98.4 |
56 58 43 |
4-15 4-14 4-16 |
14.5 16 12.7 |
50 | 4 | 10 | 11 |
| 1" | 10K PN16 150LB |
90 | 180 | 140 | 209 | 182 | 84 | 50.4 | 22.2 | 90 85 79.4 |
125 115 108 |
67 68 50.8 |
4-19 4-14 4-16 |
14.3 16 14.3 |
63 | 4 | 10 | 11 |
| 11/4" | 10K PN16 150LB |
110 | 190 | - | 214 | 192 | 84 | - | - | 100 100 88.9 |
135 140 117.5 |
76 78 63.5 |
4-19 4-18 4-16 |
16.3 16 15.8 |
63 | 4 | 10 | 11 |
| 11/2" | 10K PN16 150LB |
120 | 220 | 170 | 250 | 219 | 115 | 50.4 | 35 | 105 110 98.4 |
140 150 127 |
81 88 73 |
4-19 4-18 4-16 |
16.5 16 17.4 |
90 | 4 | 8 | 11 |
| 2" | 10K PN16 150LB |
150 | 235 | 212 | 267 | 226 | 115 | 64 | 47.5 | 120 125 120.7 |
155 165 152.4 |
96 102 92 |
4-19 4-18 4-19 |
16.5 18 19 |
90 | 4 | 8 | 11 |
