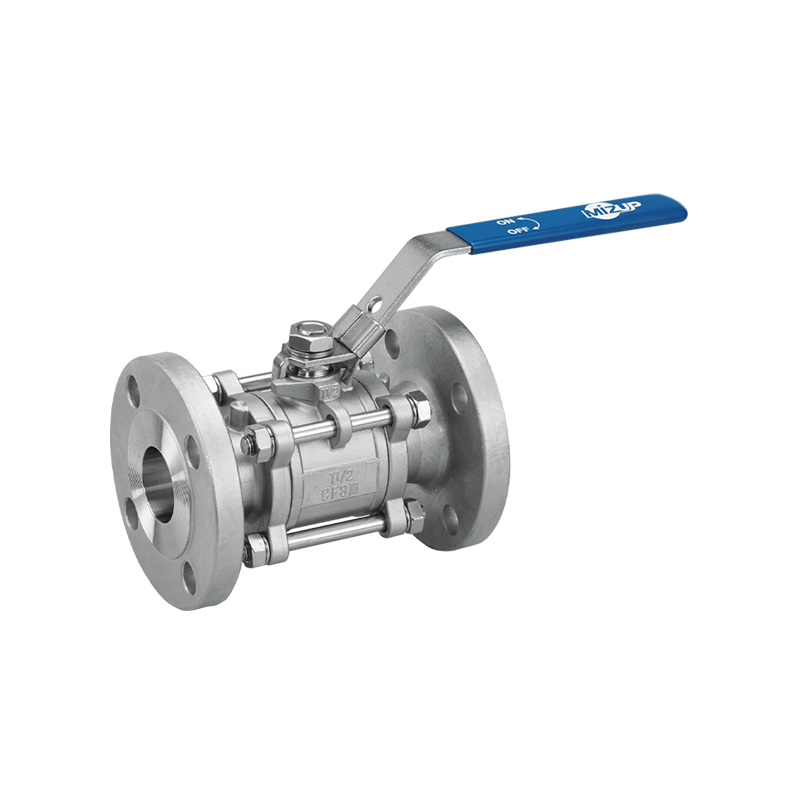

Model 305 3-Piece Manual Ball Valve

Pressure Rating
1000WOG
Material
ASTM A351-CF8M
Seat
PTFE, TFM1600, 25%, 50%
Bore Type
Full Bore
Additional Features
Available connections:
ANSI Class 150, JIS 10K, DIN PN40
Download
INQUIRY
Specifications
Model 305 3-Piece Manual Ball Valve

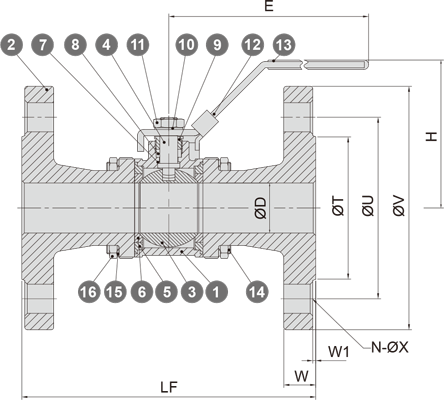

Materials List
No. Part Name Q'TY Material
1 BODY 1 CF8M
2 END CAP 2 CF8M
3 BALL 1 SUS316
4 STEM 1 SUS316
5 PACKING 2 PTFE
6 SEAT 2 PTFE
7 STEM SEAL 1 PTFE
8 STEM PACKING 1 PTFE
9 GLAND NUT 1 SUS304
10 WASHER 1 SUS304
11 STEM NUT 1 SUS304
12 HANDLE 1 SUS304
13 HANDLE SLEEVE 1 VINYL
14 BOLT 4~6 SUS304
15 WASHER 4~12 SUS304
16 BOLT NUT 4~12 SUS304

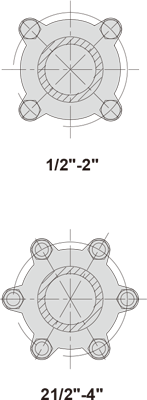

Dimensions (mm)
Size FLANGED ØD E H LF ØT ØU ØV W W1 ØX N
1/2" 150 LB
PN40
10K		 15 135 85 108
131.1
108		 35
47.3
52		 60.4
65
70		 89
95
95		 11.2
16
12		 1.6
2
1		 16
14
15		 4
3/4" 150 LB
PN40
10K		 20 135 89 117
150
117		 43
58
58		 69.9
75
75		 98.4
105
100		 1.7
18
14		 1.6
2
1		 16
14
15		 4
1" 150 LB
PN40
10K		 25 175 87 127
160
127		 50.8
69
70		 79.4
85
90		 108
115
125		 14.3
18
14		 1.6
2
1		 16
14
19		 4
11/4" 150 LB
PN40
10K		 32 175 92 146
182
146		 64
78.8
80		 88.9
100
100		 117.5
140
135		 15.9
18
16		 1.6
2
2		 16
18
19		 4
11/2" 150 LB
PN40
10K		 38 211 105 165
200
165		 73
90
85		 98.5
110
105		 127
150
140		 17.5
18
16		 1.6
3
2		 16
18
19		 4
2" 150 LB
PN40
10K		 50 211 113 192
230
178		 92
106
100		 120.7
125
120		 152.4
165
155		 19.1
20
16		 1.6
3
2		 19
18
19		 4
21/2" 150 LB
PN40
10K		 65 247 128 232
290
232		 104.8
122
120		 139.7
145
140		 177.8
185
175		 22.3
22
18		 1.6
3
2		 19
18
19		 4
8
4
3" 150 LB
PN40
10K		 80 247 137 255
310
255		 127
138
130		 152.4
160
150		 190.5
200
185		 23.9
24
18		 1.6
3
2		 19
18
19		 4
8
8
4" 150 LB
PN40
10K		 100 295 173 290
350
290		 157.2
162
155		 190.5
190
175		 228.6
235
210		 23.9
24
18		 1.6
3
2		 19
23
19		 8
